572 Series IP67 - 5.80 Millimeter (mm) Pitch - Double Latch - E-Seal - In-Line Waterproof Connectors On EDAC, Inc.

5.8mm Pitch, Rated Current: 10A max
Fully Waterproof with Double Latch Solution
Available in Wire-to-Wire and Wire-to-Board Options
Seals preassembled into housing; no external sealing required available in 1, 2, or 3 Positions
True Crimp and Poke Solution
Internal Polarization to Prevent Mismating
Available with wire already installed
Wide range of wire sizes available
Waterproof Grade IP67 Certified

Item #	Item Name	Electrical Connector Mounting	Electrical Connector Gender	Number of Positions	Style
572-001-000-200	N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 1 Contact Spaces	N/A In-Line	N/A Female	N/A 1	N/A Wire to Board Wire to Wire
572-001-420-101	N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 1 Board Mount Contacts	N/A In-Line	N/A Male	N/A 1	N/A Wire to Board
572-002-000-100	N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 2 Contact Spaces	N/A In-Line	N/A Male	N/A 2	N/A Wire to Wire
572-002-000-200	N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 2 Contact Spaces	N/A In-Line	N/A Female	N/A 2	N/A Wire to Board Wire to Wire
572-002-420-101	N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 2 Board Mount Contacts	N/A In-Line	N/A Male	N/A 2	N/A Wire to Board
572-003-000-100	N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 3 Contact Spaces	N/A In-Line	N/A Male	N/A 3	N/A Wire to Wire
572-003-000-200	N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 3 Contact Spaces	N/A In-Line	N/A Female	N/A 3	N/A Wire to Board Wire to Wire
572-003-420-101	N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 3 Board Mount Contacts	N/A In-Line	N/A Male	N/A 3	N/A Wire to Board
572-001-000-100	N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 1 Contact Spaces	N/A In-Line	N/A Male	N/A 1	N/A Wire to Wire

572-001-000-200

N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 1 Contact Spaces

N/A In-Line

N/A Female

N/A 1

N/A Wire to Board Wire to Wire

572-001-420-101

N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 1 Board Mount Contacts

N/A In-Line

N/A Male

N/A 1

N/A Wire to Board

572-002-000-100

N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 2 Contact Spaces

N/A In-Line

N/A Male

N/A 2

N/A Wire to Wire

572-002-000-200

N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 2 Contact Spaces

N/A In-Line

N/A Female

N/A 2

N/A Wire to Board Wire to Wire

572-002-420-101

N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 2 Board Mount Contacts

N/A In-Line

N/A Male

N/A 2

N/A Wire to Board

572-003-000-100

N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 3 Contact Spaces

N/A In-Line

N/A Male

N/A 3

N/A Wire to Wire

572-003-000-200

N/A 572 Series Wire to Wire Waterproof In-Line Female Connector with 3 Contact Spaces

N/A In-Line

N/A Female

N/A 3

N/A Wire to Board Wire to Wire

572-003-420-101

N/A 572 Series Wire to Board Waterproof In-Line Male Connector with 3 Board Mount Contacts

N/A In-Line

N/A Male

N/A 3

N/A Wire to Board

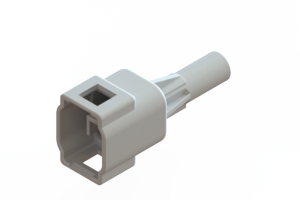

572-001-000-100

N/A 572 Series Wire to Wire Waterproof In-Line Male Connector with 1 Contact Spaces

N/A In-Line

N/A Male

N/A 1

N/A Wire to Wire
