Signal, along with power or coaxial contacts within one connector
Space saving on the PCB and I/O designs
Available in various pin out configurations
Pin and socket contact mating design with P.C. tail and solder cup termination
Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating retention
Mounting options include threaded hole with (#4-40UNC, M3), with or without boardlocks
D-Shaped connector mating outline provides polarization

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Item Name	Electrical Connector Type	Number of Positions	Layout	Maximum Contact Resistance for Power Pins

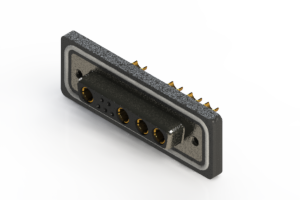

628W9W4-222-3N2	N/A 628WC Series 30 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
628W9W4-224-1N5	N/A 628WC Series 10 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
628W9W4-224-2N5	N/A 628WC Series 20 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
628W9W4-224-3N2	N/A 628WC Series 30 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
628W9W4-224-3N5	N/A 628WC Series 30 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
628W9W4-224-4N5	N/A 628WC Series 40 Ampere (A) Current Rating for Power Pins Vertical Waterproof Power Combo D-Sub Connector	N/A D-Sub	N/A 9	N/A 9W4	N/A 1 mO
