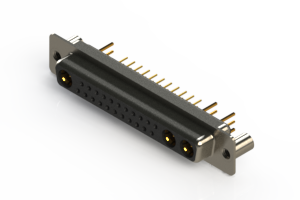

Brands |
N/A EDAC |
Series |
N/A 628C |
Electrical Connector Type |
N/A D-Sub |
Electrical Connector Gender |
N/A Receptacle |
Number of Positions |
N/A 25 |
Contact Type |
N/A Coaxial Signal |
Contact Tail Type |
N/A P.C. Tail |
Mounting Options |
N/A #4-40 Universal Naming Convention (UNC) Threaded Hole 7.40 (PC Tail Only) |
Layout |
N/A 25W3 |
Shell Type |
N/A Size 37 Contact Shell |
Current/Impedance Rating |
N/A 75 O |
Number of Power or Coaxial Contacts |
N/A 3 |
Number of Signal Contacts |
N/A 22 |
Total Number of Contacts |
N/A 25 |
Insulator Material |
N/A Underwriters Laboratories (UL) 94V-0 Thermoplastic Polyester |
Insulator Material Color |
N/A Black |
Contact Material |
N/A Copper Alloy |
Contact Plating |
N/A Gold Flash Plating |
Current Rating for Signal Pins |
N/A 5 A |
Maximum Contact Resistance for Power Pins |
N/A 1 mO |
Maximum Contact Resistance for Signal Pins |
N/A 10 mO |
Dielectric Withstanding Alternating Current (AC) Root Mean Square (RMS) Voltage at Sea Level |
N/A 1000 V |
Minimum Insulation Resistance |
N/A 5000 MO |
Operating Temperature |
N/A -55 to +125 ºC |
Shell Material |
N/A Tin or Nickel Plated Steel |
Shell Plating |
N/A Nickel |
Voltage Rating |
N/A 125 V |
Mating Cycles |
N/A 50 for Gold Flash Plating 500 for 30 Microinches Gold Plating |
Note |
N/A Brochures and handouts are also available in Spanish, Portuguese, French, and Chinese, and to visit WWW.EDAC.NET! to download. |
